Mechanical fastening system of the cleats is gaining its popularity due to its advantages over belts with welded one. The possibility of using almost any material and profile shape is another huge benefit of this system.
Mechanical cleats
Technical parameters
- Self-centering effect makes this system more precise than welded cleats
- Transfer of much higher loads than welded cleats
- Precise solutions eliminate positional tolerances of the cleats applied by welding, position tolerances of the cleats applied by this system reflect the toothed belt pitch
- Versatility allowing users to mount cleats made of a wide range of materials such as steel, stainless steel, plastic, wood, aluminum, etc.
- Flexibility to change or rearrange cleats according to application's current needs
- Economical solution to replace only worn or damaged cleats without the need to replace the entire belt

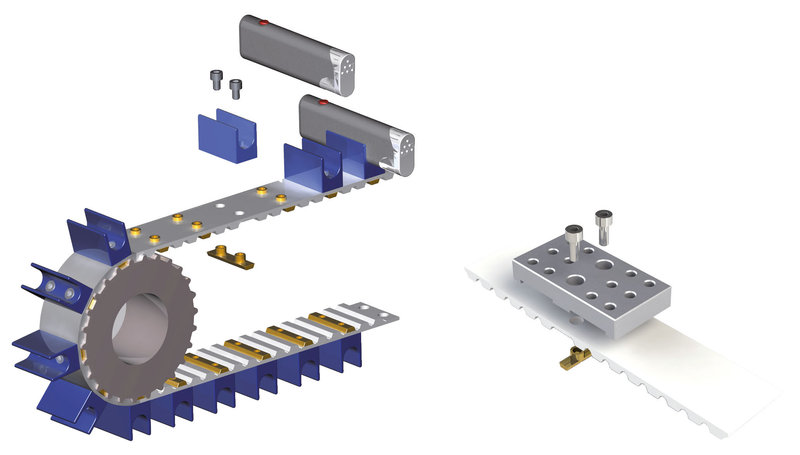

System for mechanical fastening of cleats is available in two versions. As an embedded design that replaces only the central part of the belt tooth or as a complete metal tooth.
