Timing belt conveyors

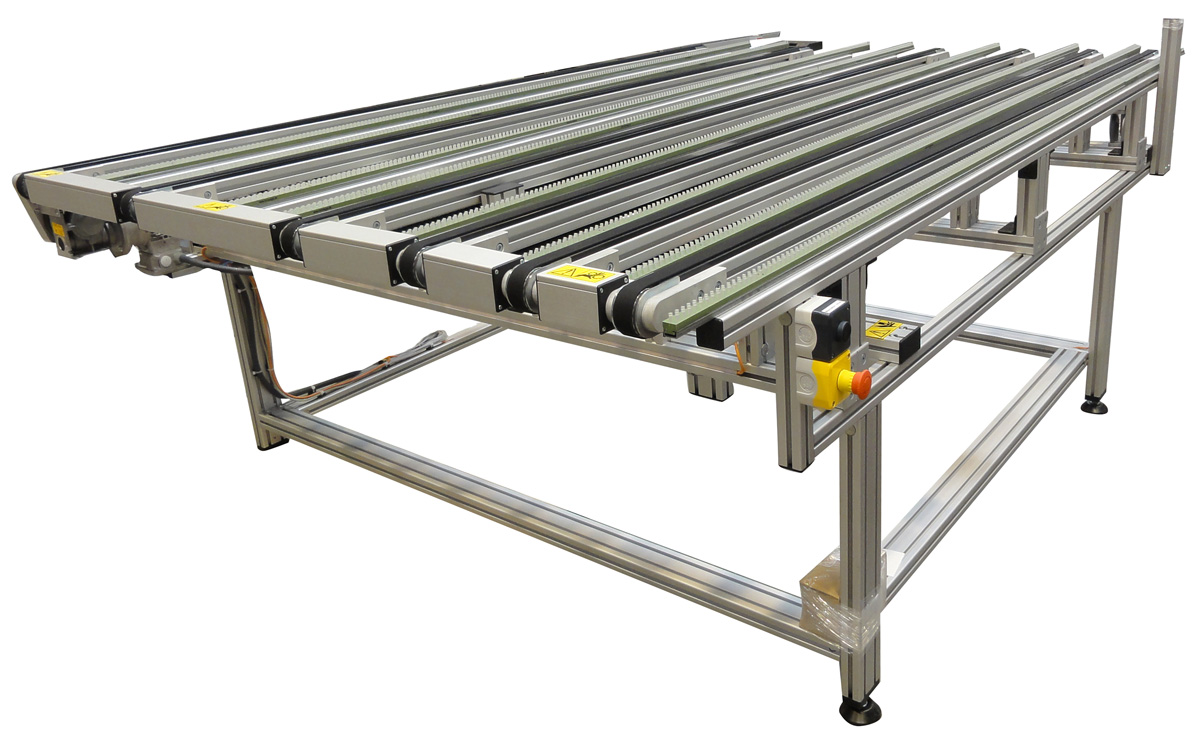

They are suitable for the transport of piece goods of larger dimensions, one of the dimensions being several times larger than others (bars, prisms, etc.). The main part of the conveyor is a frame made of aluminum grooved item profile sections, drive and driven aluminum pulleys and aluminum pulley holders with tilting double row ball bearings. Belt conveyors offer higher capacity than belt conveyors and the ability to transport very wide or long materials.


Timing belt conveyor 40CD MS, 40C MS

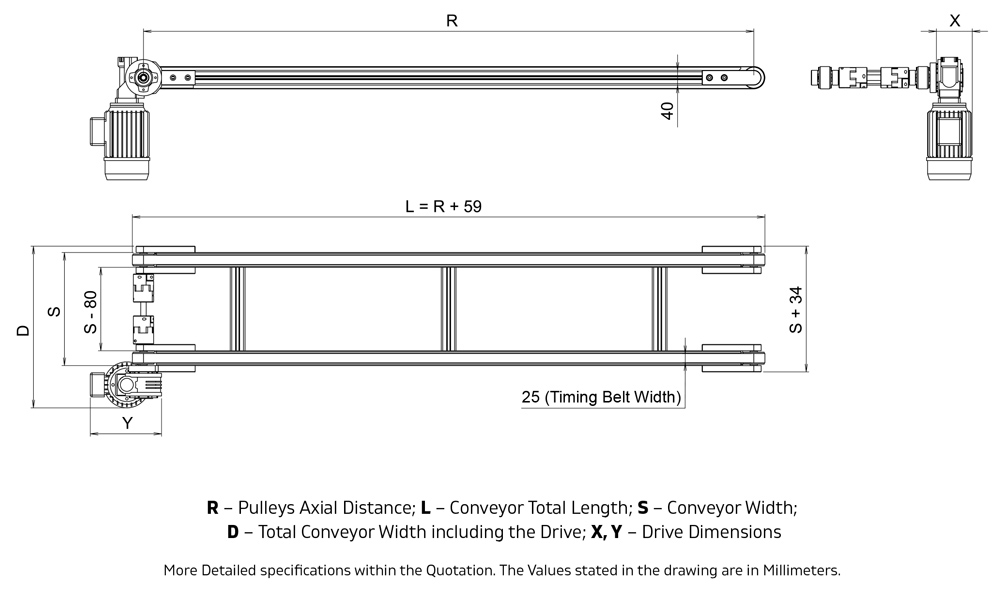

Timing belt conveyor 40CD MS and 40C MS Timing belt conveyor 40CD MS and 40C MS - draw

Standard parameters
Conveyor Total Length 500 – 6 000 mm
Frame Width 200 – 1000 mm
Conveyor Load 15 kg/m
Drive 3 x 400 V (1 x 230 V)
Timing Belt Speed * 4 - 38 m/min
Timing Belt PU, T10, B25, AS, PAR+PAZ
Ambient Temperature 10 – 60 °C
Pitch Diameter of Pulleys 58,7 mm
* Possibility of Speed Regulation by Frequency Converter in the Range from 40 to 150% (Nominal Speed =100%).
The above figures are standard. Other values on request.



Demand form

Questionnaire to perform timing belt conveyor 40 CD MS a 40 C MS

Timing belt conveyor 80CD MS, 80C MS

Timing belt conveyor 80CD MS and 80C MS Timing belt conveyor 80CD MS and 80C MS - draw

Standard parameters
Conveyor Total Length 600 – 10 000 mm
Frame Width 200 – 1 000 mm
Conveyor Load 25 kg/m
Drive 3 x 400 V (1 x 230 V)
Timing Belt Speed * 6,6 - 65 m/min
Timing Belt PU, T10, B25, AS, PAR+PAZ
Ambient Temperature 10 – 60 °C
Pitch Diameter of Pulleys 101,9 mm
* Possibility of Speed Regulation by Frequency Converter in the Range from 40 to 150% (Nominal Speed =100%).
The above figures are standard. Other values on request.



Demand form

Questionnaire to perform timing belt conveyor 80 CD MS a 80 C MS

Advantages

  • higher load capacity than belt conveyors
  • the ability to transport very wide or long materials
  • due to the gap between the individual branches, it is also possible to transport materials reaching the level of the upper conveyor branch
  • fast assembly and delivery of conveyors - delivery date of conveyors in standard version up to 14 days
  • conveyors are manufactured according to customer requirements, ie. "made-to-measure"
  • the ability to address specific customer requirements such as a conveyor to the ESD environment
  • the possibility of performing special technological or manufacturing operations directly on the conveyor (eg. blowing, degreasing, draining the oil into the tub under the conveyor, etc.)
  • an optional number of branches according to the nature of the material being transported
  • conveyor skeleton made of item modular system profiles with the possibility of easily connecting other profiles or additional technologies, eventually possibility to modify the conveyor in the future
  • silent operation that predestines the conveyors to be built into permanently installed assembly lines

Technical solution

  • basic frame of conveyor made of aluminum groove profiles of the modular system item
  • drive and driven aluminum pulley
  • aluminum drive and driven pulleys with tilting ball bearings for adjusting and tightening the conveyor belt
  • a drive unit consisting of a compact unit consisting of a three-phase asynchronous electric motor and a worm gearbox; eventually drive fitted with a toothed belt transmission. For heavier loads, use helical-bevel gears
  • transport belts of various properties (PU, PU with textile layer for noise reduction and material accumulation)
  • plastic sliding guide with a low or raised outer edge under the top of the belt to support it all over the area and reduce friction
  • depending on the nature of the material being transported, it is possible to select a different number of branches of the belt conveyor
  • the speed is constant or can be controlled using a frequency inverter. In the case of the conveyor with the transmission, the possibility of changing the constant speed can be changed by replacing the transmission, consisting of a toothed belt, two pulleys and a tensioning pulley.
  • the base, as well as the base frame, made of aluminum grooved sections of the modular system item. The variant is also adjustable in height (manual, drive) or sloping design.
  • delivery possible including electrical connection with motor starter or frequency inverter

Optional accessories

  • electrical connection of conveyors including elements such as optical sensors with reflector, safety STOP buttons, frequency inverter, motor starter, etc.
  • base
  • motor 1 x 230 V
  • plastic sliding guide with raised edges for material guidance
  • side guides adjustable only horizontally or horizontally and vertically
  • mechanical end stops
