V-belt drives

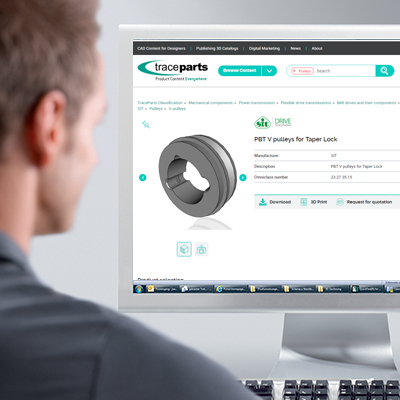

CAD database of V-shape belt pulleys

You do not have time to draw each component when designing a device? Use CAD drawings of V-shape belt pulleys in all basic 2D and 3D formats.

CAD libraries (server TraceParts):

• PBR adjustable V-shape belt pulleys
• PYB V-shape belt pulleys for Poly-V
• PBT V-shape belt pulleys for Taper Lock
• PT V-shape belt pulleys with pre-drilled hole
• V-shape belt pulleys for Taper Lock (server TraceParts)
• vibration technology

The database contains more than 7,500 unique parts. All parameters and materials are the same as those we will deliver to you.

Fast availability

Our central warehouse in Mokré Lazceis among the best equipped warehouses in Europe. We stock mainly high-powered V-belts GATES Quad Power 4. In case of accident use segmented V-belts which you can connect to any required length. Most of V-belt pulleys for Taper Lock®, which you can find also in our catalogue we supply also directly from our warehouse. You will receive ordered goods the next working day. Unstored items will be delivered within one week.

Printed catalogues for our customers for free

We are doing our best to make your work easier! Are you among those who prefer to work with printed catalogues rather then with the electronic ones? Then one of our above standard services is for you. All catalogues, brochures or flyers we send to our customers by mail upon request for free.
